JAX gradients#

Every public function in classy_szlite is JAX-traceable. :class:~classy_szlite.CosmoParams and :class:~classy_szlite.ProfileParamsA10 are JAX pytrees (NamedTuples of arrays), so you can differentiate w.r.t. any field directly.

Why this matters#

A pure-JAX forward model unlocks the entire JAX ecosystem on top of classy_szlite:

Fisher matrices — jax.jacfwd / jax.jacrev give exact per-parameter derivatives, so the Fisher information \(F_{ij}=\sum_\ell \partial_i C_\ell \,\mathrm{Cov}^{-1}_{\ell\ell'}\partial_j C_{\ell'}\) is one line.
Gradient-based sampling — Hamiltonian Monte Carlo / NUTS (numpyro, blackjax) need \(\nabla \log p\). We give it exactly, not via finite differences.
MAP / VI — jaxopt, optimistix, optax minimisers all consume jax.grad.
Differentiable simulation-based inference — couple to flow-based posteriors (flowMC, sbi) that exploit gradients.

Finite differences are slow, noisy, and require choosing \(\varepsilon\). Autodiff is exact (up to floating point) and costs roughly the same as the forward pass.

Verification: autodiff vs finite difference#

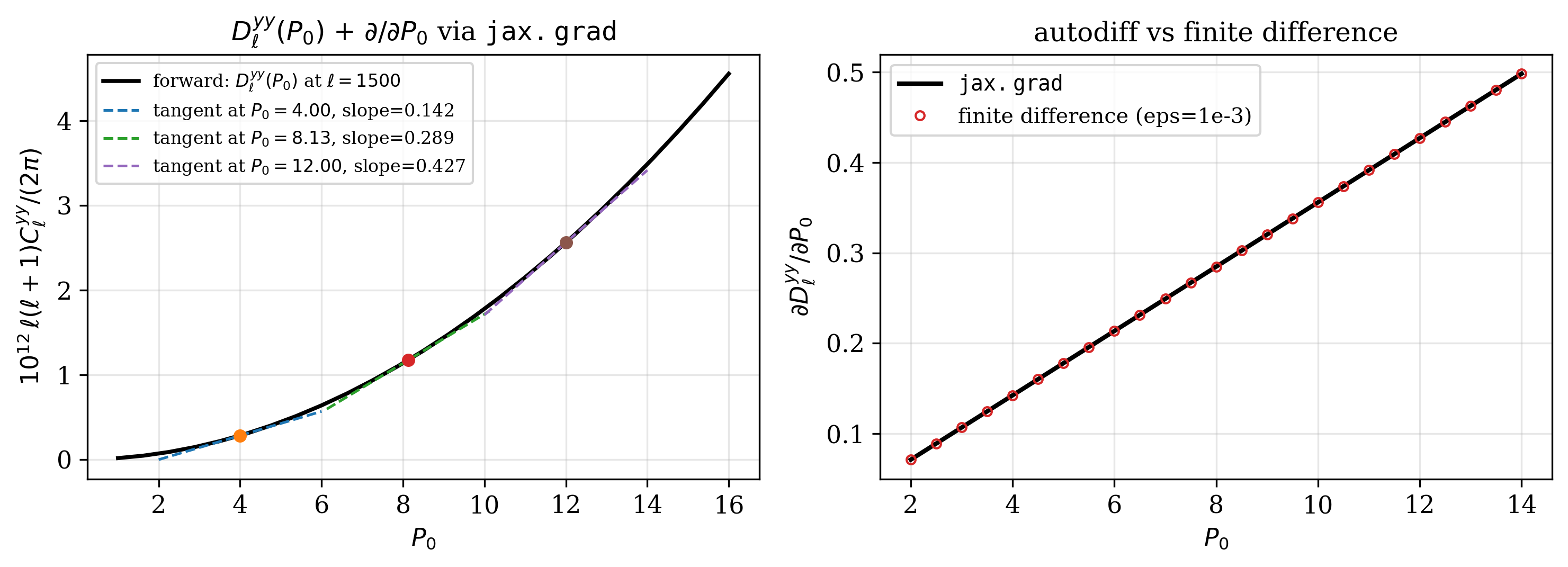

The plot below shows two things at once:

Left — \(D_\ell^{yy}(P_0)\) at \(\ell = 1500\) as \(P_0\) varies, with tangent lines whose slopes were computed by jax.grad. They sit exactly on the curve, which means autodiff is consistent with the forward pass.
Right — gradient values from jax.grad (solid line) compared to a 2-point central finite difference with \(\varepsilon = 10^{-3}\) (open circles). The two agree to numerical precision.

autodiff vs finite difference

For this benchmark the maximum relative error was \(|\,\mathtt{jax.grad} - \mathtt{FD}\,| / |\,\mathtt{jax.grad}\,| \lesssim 2\times10^{-12}\) — i.e. the gradient is exact to double-precision round-off, which is what you would expect from analytically-derived expressions.

Recommended path: gradient via the factory closure#

For inference at fixed cosmology, the factory closure is by far the fastest way to get \(\partial \boldsymbol{C}^{yy}/\partial \boldsymbol{\theta}_{\rm profile}\):

import jax, jax.numpy as jnp
jax.config.update("jax_enable_x64", True)
import classy_szlite as csl

cosmo = csl.CosmoParams()
ell = jnp.geomspace(2, 5000, 30)
ev = csl.cl_yy_factory(cosmo, ell)        # heavy precomputation, done once

def loss(P0, beta):
    cl_1h, cl_2h = ev(csl.ProfileParamsA10(P0=P0, beta=beta, B=1.25))
    return jnp.sum(cl_1h + cl_2h)

g_P0, g_beta = jax.grad(loss, argnums=(0, 1))(8.13, 5.48)

Warm timing: ~17 ms per gradient call, vs. ~5 ms for the forward pass. The ~3× overhead is the canonical reverse-mode autodiff cost.

Gradient through the full pipeline (cosmology + profile)#

When you also need gradients w.r.t. cosmology, use cl_yy (or any other top-level function) directly:

def full_loss(omega_b, omega_cdm, P0, beta):
    cosmo = csl.CosmoParams(omega_b=omega_b, omega_cdm=omega_cdm)
    profile = csl.ProfileParamsA10(P0=P0, beta=beta, B=1.25)
    cl_1h, cl_2h = csl.cl_yy(cosmo, profile, ell)
    return jnp.sum(cl_1h + cl_2h)

g = jax.grad(full_loss, argnums=(0, 1, 2, 3))(0.0226, 0.118, 8.13, 5.48)

Cold first call ≈ a few seconds (compiles the JAX trace through the cosmology emulator pipeline); warm calls ≈ 50 ms.

Gradient w.r.t. `CosmoParams` as a pytree#

You can differentiate w.r.t. the whole container in one call. JAX returns a CosmoParams whose fields hold the partials:

def cl_loss(cosmo):
    profile = csl.ProfileParamsA10(P0=8.13, beta=5.48, B=1.25)
    cl_1h, cl_2h = csl.cl_yy(cosmo, profile, ell)
    return jnp.sum(cl_1h + cl_2h)

grads = jax.grad(cl_loss)(csl.CosmoParams())
print(grads.omega_b, grads.omega_cdm, grads.fEDE, grads.log10z_c)

Jacobians (Fisher matrix building block)#

Use jax.jacfwd for \(\partial C_\ell/\partial\theta\) when len(ℓ) >> len(θ) (the usual case in cosmology):

def Cl_vec(P0, beta):
    c1, c2 = ev(csl.ProfileParamsA10(P0=P0, beta=beta, B=1.25))
    return c1 + c2

jacobian = jax.jacfwd(Cl_vec, argnums=(0, 1))(8.13, 5.48)
# jacobian[0]: shape (n_ell,)  →  ∂C_ℓ/∂P0
# jacobian[1]: shape (n_ell,)  →  ∂C_ℓ/∂β

For sampled-cosmology Fisher matrices, use the full pipeline:

def Cl_full(omega_b, omega_cdm, P0, beta):
    cosmo = csl.CosmoParams(omega_b=omega_b, omega_cdm=omega_cdm)
    c1, c2 = csl.cl_yy(cosmo, csl.ProfileParamsA10(P0=P0, beta=beta, B=1.25), ell)
    return c1 + c2

J = jax.jacfwd(Cl_full, argnums=(0, 1, 2, 3))(0.0226, 0.118, 8.13, 5.48)
# 4 arrays each of shape (n_ell,) — the columns of the design matrix.

Caveats#

Don’t wrap the factory closure in jax.jit. Internally it calls mcfit.TophatVar for \(\sigma(R)\), which uses NumPy / SciPy code paths that are not jit-safe. The factory is already fast (~5 ms / call) and jax.grad works directly.
For inference at fixed cosmology, prefer the factory path. The full pipeline is gradient-correct but ~3× slower (~50 ms vs ~17 ms with autodiff).
jax.config.update("jax_enable_x64", True) is set on import — cosmology likelihoods need double precision; single precision will give noticeably biased posteriors at the bandpower covariance level.
