Tutorials & examples#
Each section pairs a runnable snippet with the figure it produces. All examples assume:
import jax, jax.numpy as jnp
jax.config.update("jax_enable_x64", True)
import numpy as np
import matplotlib.pyplot as plt
import classy_szlite as csl
cosmo = csl.CosmoParams() # Planck-18-ish defaults

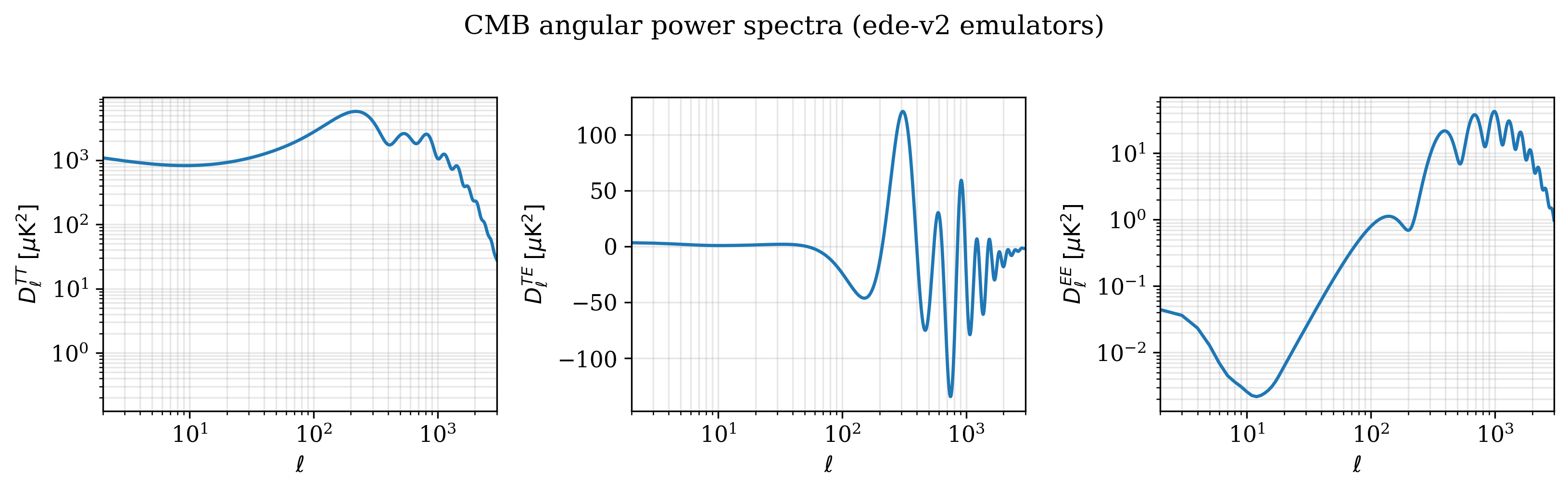

CMB angular power spectra#
cls = csl.cl_TTTEEE(cosmo, spectra=("tt", "te", "ee"))
T_CMB_uK2 = (2.7255e6) ** 2
fig, axes = plt.subplots(1, 3, figsize=(11, 3.3))
for ax, key, ylab, scale in [
(axes[0], "tt", r"$D_\ell^{TT}\;[\mu K^2]$", "log"),
(axes[1], "te", r"$D_\ell^{TE}\;[\mu K^2]$", "linear"),
(axes[2], "ee", r"$D_\ell^{EE}\;[\mu K^2]$", "log"),
]:
ax.plot(cls["ell"], cls[key] * T_CMB_uK2)
ax.set(xscale="log", yscale=scale,
xlabel=r"$\ell$", ylabel=ylab, xlim=(2, 3000))
ax.grid(True, alpha=0.3, which="both")
fig.tight_layout()

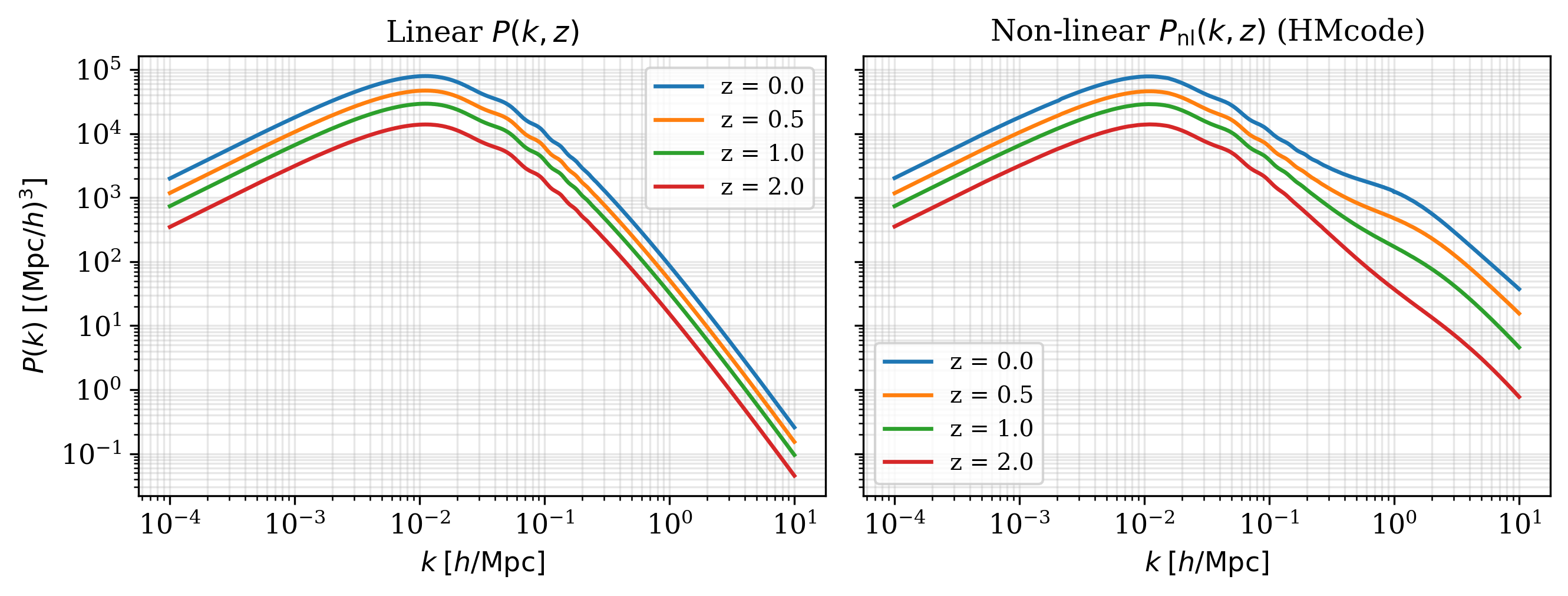

Matter Pk (linear + nonlinear)#
z_arr = jnp.array([0.0, 0.5, 1.0, 2.0])
k, pk = csl.Pk(cosmo, z_arr)
_, pnl = csl.Pnl(cosmo, z_arr)
fig, axes = plt.subplots(1, 2, figsize=(9, 3.5), sharey=True)
for i, z in enumerate(np.asarray(z_arr)):
axes[0].loglog(k, pk[i], label=f"z = {z}")
axes[1].loglog(k, pnl[i], label=f"z = {z}")
axes[0].set(xlabel=r"$k\;[h/\mathrm{Mpc}]$", ylabel=r"$P(k)\;[(\mathrm{Mpc}/h)^3]$",
title="Linear")
axes[1].set(xlabel=r"$k\;[h/\mathrm{Mpc}]$", title="Non-linear (HMcode)")
for ax in axes:
ax.grid(True, which="both", alpha=0.3); ax.legend()
fig.tight_layout()

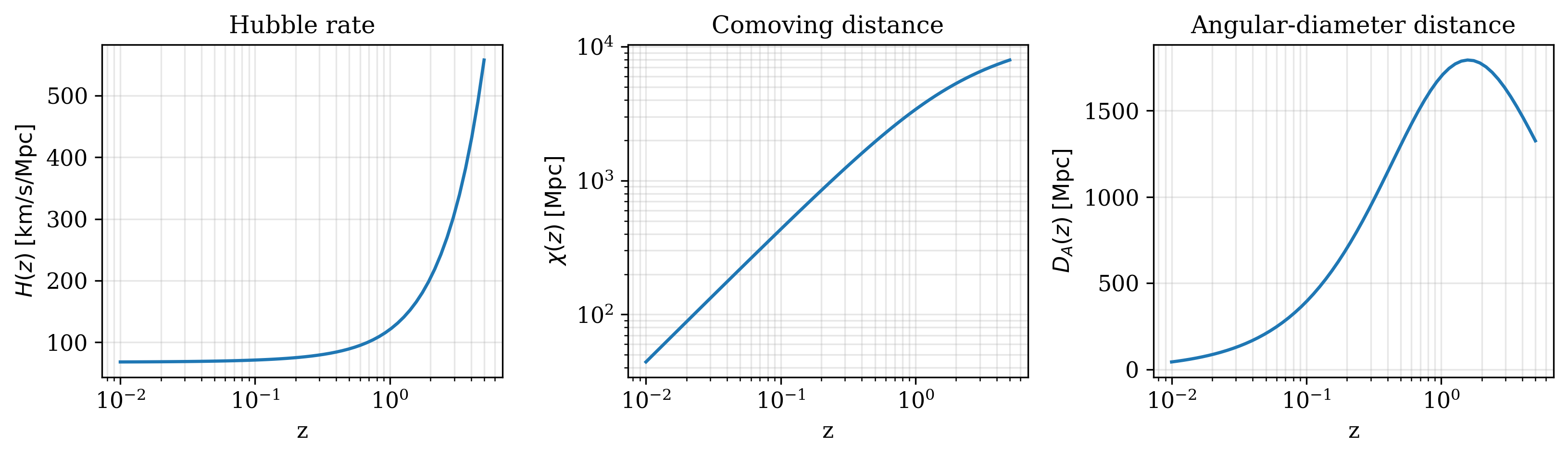

Cosmological distances#
z = jnp.geomspace(0.01, 5.0, 60)
Hz, chi, Da = csl.distances(cosmo, z)
c = 299_792.458
fig, axes = plt.subplots(1, 3, figsize=(11, 3.3))
axes[0].semilogx(z, np.asarray(Hz) * c)
axes[0].set(xlabel="z", ylabel=r"$H(z)\;[\mathrm{km/s/Mpc}]$", title="Hubble rate")
axes[1].loglog(z, chi)
axes[1].set(xlabel="z", ylabel=r"$\chi(z)\;[\mathrm{Mpc}]$", title="Comoving distance")
axes[2].semilogx(z, Da)
axes[2].set(xlabel="z", ylabel=r"$D_A(z)\;[\mathrm{Mpc}]$",
title="Angular-diameter distance")
for ax in axes: ax.grid(True, alpha=0.3, which="both")
fig.tight_layout()

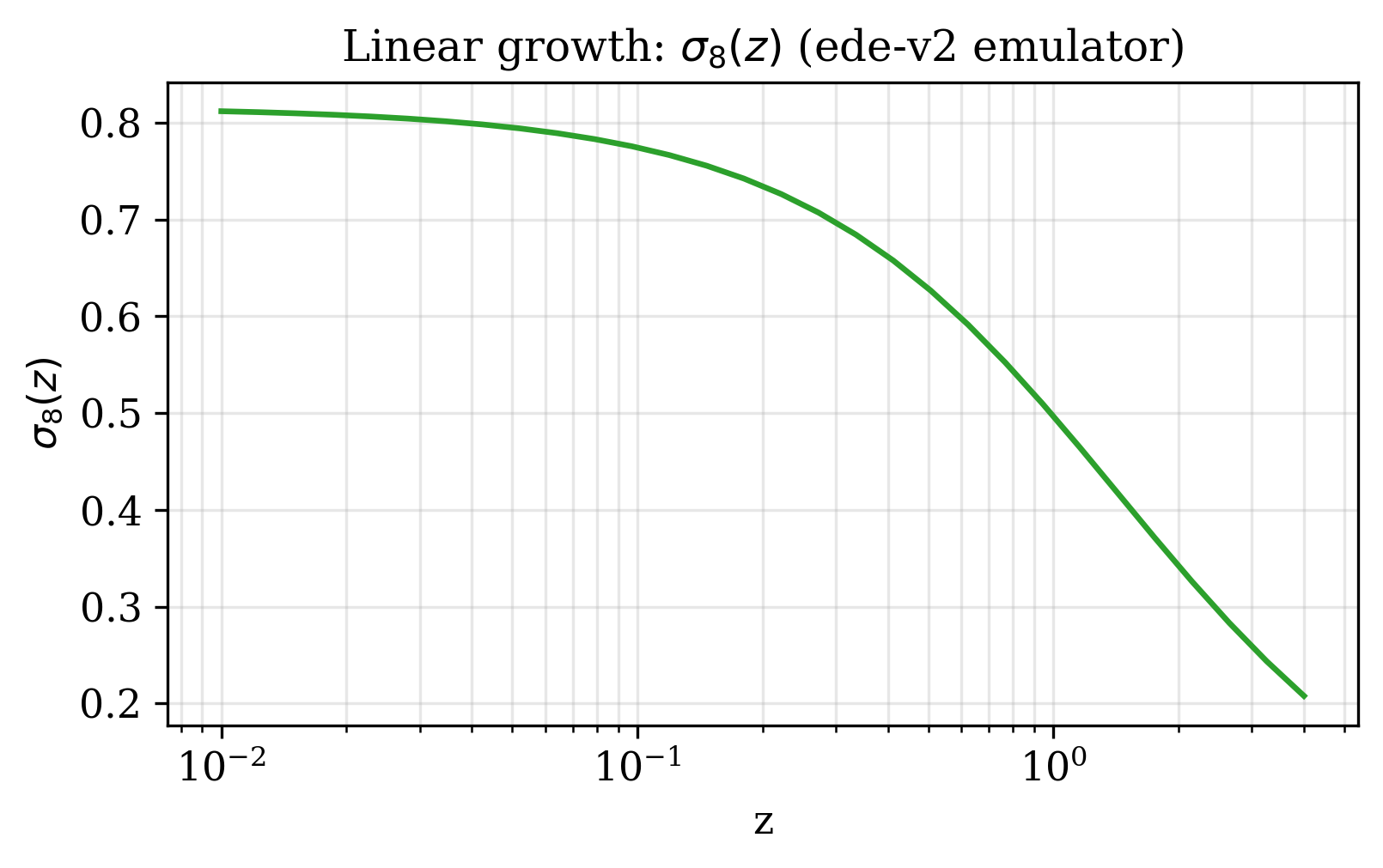

Linear growth σ₈(z)#
Using the linear \(P_k\) amplitude as a fixed-shape proxy:
z = jnp.geomspace(0.01, 4.0, 30)
k, pk = csl.Pk(cosmo, z)
sigma8_0 = csl.derived(cosmo)["sigma_8"]
amp = np.sqrt(np.trapezoid(pk, k, axis=1))
sigma8_z = sigma8_0 * amp / amp[0]
plt.plot(z, sigma8_z); plt.xscale("log")
plt.xlabel("z"); plt.ylabel(r"$\sigma_8(z)$"); plt.grid(True, alpha=0.3, which="both")

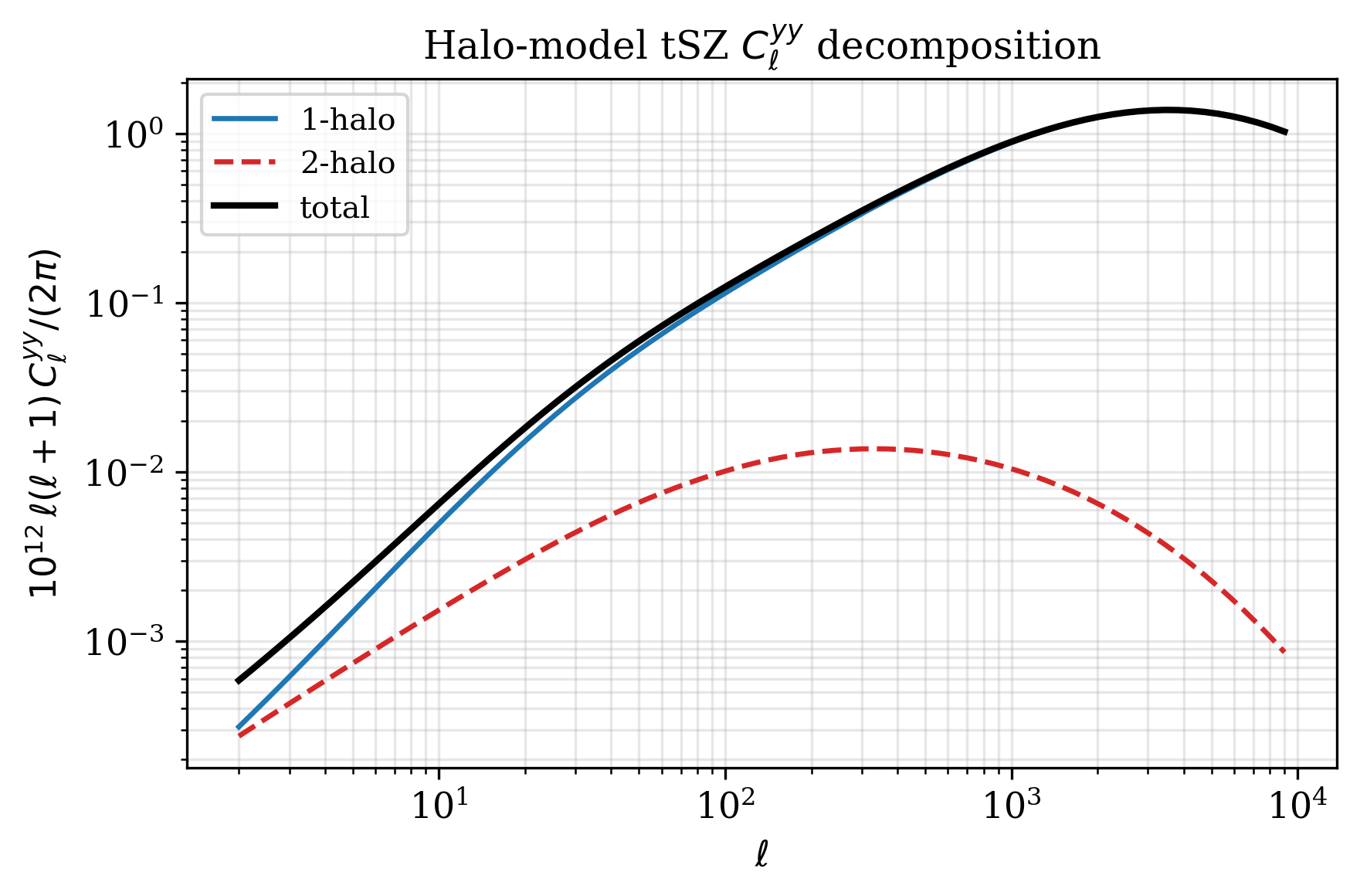

Halo-model tSZ Cl^yy (1h + 2h decomposition)#
profile = csl.ProfileParamsA10(P0=8.13, beta=5.48, B=1.25)
ell = jnp.geomspace(2, 9000, 80)
cl_1h, cl_2h = csl.cl_yy(cosmo, profile, ell)
prefac = np.asarray(ell * (ell + 1) / (2 * np.pi)) * 1e12
plt.loglog(ell, prefac * cl_1h, label="1-halo")
plt.loglog(ell, prefac * cl_2h, label="2-halo", ls="--")
plt.loglog(ell, prefac * (cl_1h+cl_2h), label="total", color="k", lw=2)
plt.xlabel(r"$\ell$"); plt.ylabel(r"$10^{12}\,\ell(\ell+1)C_\ell^{yy}/(2\pi)$")
plt.grid(True, alpha=0.3, which="both"); plt.legend()
For the dependence on n_z, n_m, m_min, m_max, see the
convergence study.
Bestfit + NUTS sampling on Cl^yy bandpowers (baseline vs lows8)#
The factory closure makes both gradient-based optimisation (L-BFGS,
Adam, …) and Hamiltonian-style samplers (NUTS, HMC) a natural fit:
each forward pass is one ~5 ms ev(profile) call, gradients are
exact via jax.grad, and there is no proposal-covariance tuning.
The example fits a tSZ Cl^yy bandpower dataset at two fixed cosmologies that share the same ω_b, ω_cdm, n_s but differ in σ8 through (ln10_10_As, H0):
Cosmology |
ln10_10_As |
H0 |
σ8 |
|---|---|---|---|
baseline |
3.060 |
68.22 |
≈ 0.81 |
lows8 (Flamingo low-S8) |
2.910 |
67.14 |
≈ 0.75 |
For each cosmology we run:
L-BFGS bestfit of (P₀, β) via
scipy.optimize.minimizewith exactjax.gradgradients — converges in ~20–40 fn evals, < 0.5 s.NumPyro NUTS for the full posterior, initialised at the bestfit — ~35–40 s for 8000 samples × 4 chains.
Loads the matching cobaya RW-MH chain (if present on disk) for a sampler-vs-sampler overlay.
import jax, jax.numpy as jnp
jax.config.update("jax_enable_x64", True)
import numpy as np, scipy.optimize as so
import numpyro, numpyro.distributions as dist
from numpyro.infer import MCMC, NUTS
import classy_szlite as csl
# --- load bandpowers + covariance ---
ell, y, cov = load_bandpowers() # (N,) (N,) (N, N)
inv_cov = jnp.asarray(np.linalg.inv(cov))
def build_forward(cosmo, ell_np):
ell = jnp.asarray(ell_np)
ev = csl.cl_yy_factory(cosmo, ell)
dl_factor = jnp.asarray(ell * (ell + 1) / (2 * np.pi) * 1e12)
def forward(P0, beta):
prof = csl.ProfileParamsA10(P0=P0, c500=1.156, gamma=0.3292,
alpha=1.062, beta=beta, B=1.25)
c1, c2 = ev(prof)
return dl_factor * (c1 + c2)
return forward
FIT_COSMOS = [
dict(label="baseline (σ8≈0.81)", ln10_10_As=3.060, H0=68.22),
dict(label="lows8 (σ8≈0.75)", ln10_10_As=2.910, H0=67.14116850291264),
]
for cfg in FIT_COSMOS:
cosmo = csl.CosmoParams(omega_b=0.0226, omega_cdm=0.118,
tau_reio=0.0561, n_s=0.9743,
ln10_10_As=cfg["ln10_10_As"], H0=cfg["H0"])
s8 = csl.derived(cosmo)["sigma_8"]
forward = build_forward(cosmo, ell)
# L-BFGS bestfit with JAX gradients
def neg_log_like(x):
r = jnp.asarray(y) - forward(x[0], x[1])
return 0.5 * r @ inv_cov @ r
nll, gnll = jax.jit(neg_log_like), jax.jit(jax.grad(neg_log_like))
bf = so.minimize(lambda x: float(nll(x)), [8.13, 5.48],
jac=lambda x: np.asarray(gnll(x)),
method="L-BFGS-B", bounds=[(0.1, 20), (0.5, 10)])
print(f"{cfg['label']:25s} bestfit P0={bf.x[0]:.2f} β={bf.x[1]:.2f} χ²={2*bf.fun:.1f}")
# NUTS, init at bestfit
def model():
P0 = numpyro.sample("P0", dist.Uniform(0.0, 20.0))
beta = numpyro.sample("beta", dist.Uniform(0.0, 10.0))
r = jnp.asarray(y) - forward(P0, beta)
numpyro.factor("loglike", -0.5 * r @ inv_cov @ r)
mcmc = MCMC(NUTS(model, dense_mass=True),
num_warmup=500, num_samples=2000, num_chains=4,
chain_method="sequential", progress_bar=False)
mcmc.run(jax.random.PRNGKey(0),
init_params={"P0": jnp.full(4, float(bf.x[0])),
"beta": jnp.full(4, float(bf.x[1]))})
Output on a laptop (single-thread JAX):
baseline (σ8≈0.81) L-BFGS bestfit in 0.4 s, 38 fn evals → P0=1.20 β=2.74 χ²=12.3/6
NUTS in 41 s → posterior P0 = 1.92 ± 1.60 β = 3.19 ± 0.77
lows8 (σ8≈0.75) L-BFGS bestfit in 0.4 s, 27 fn evals → P0=1.54 β=2.71 χ²=12.3/6
NUTS in 36 s → posterior P0 = 2.49 ± 1.91 β = 3.18 ± 0.74

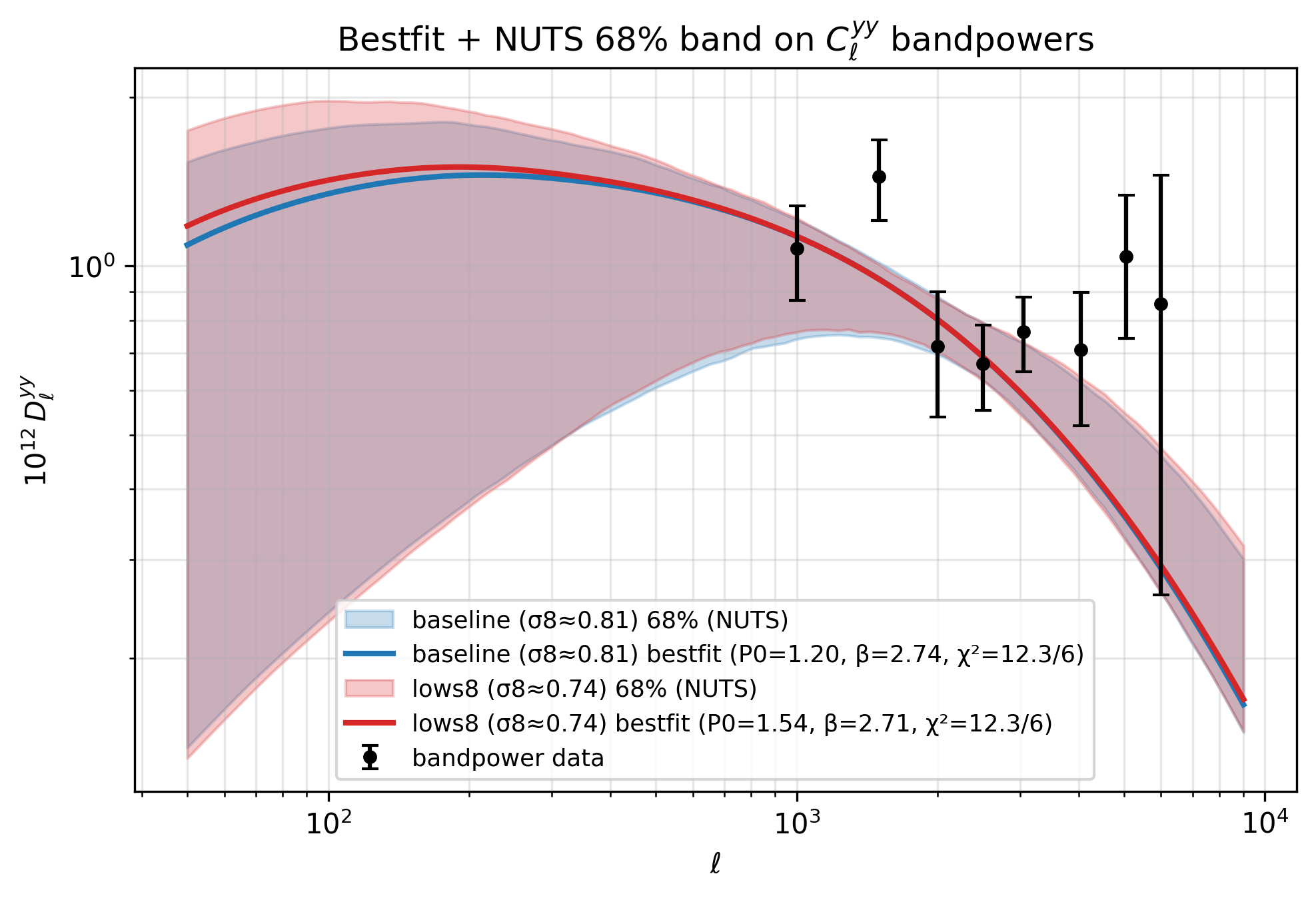

Bandpowers + bestfit curves + NUTS 68% bands for both cosmologies. The two bestfit curves are almost indistinguishable in the data range, but the underlying GNFW shapes — and especially the P₀ values that NUTS uncovers — are very different:

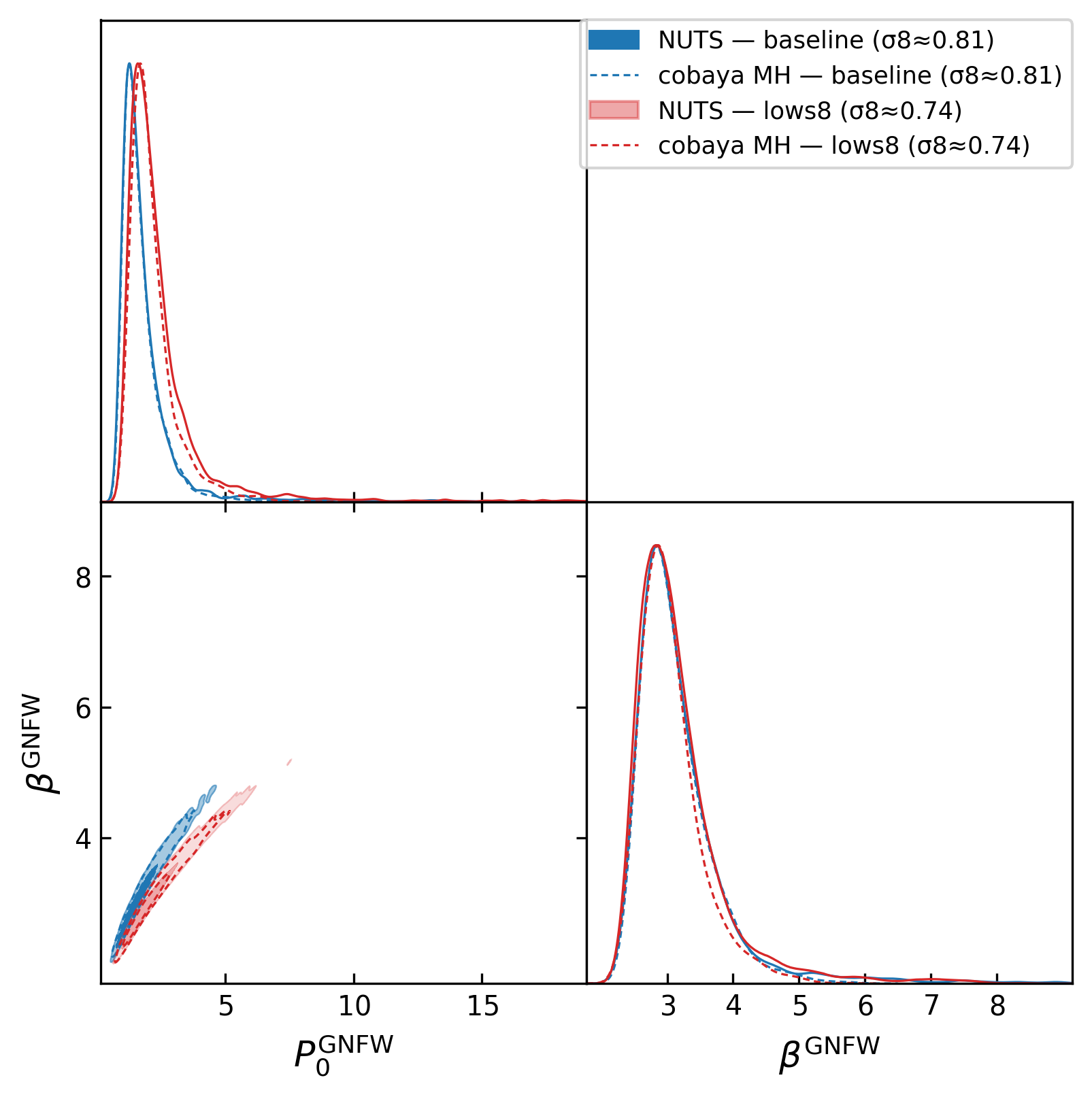

Triangle plot with 4 contours — NUTS (solid filled) + cobaya RW-MH (dashed) for each cosmology. The NUTS and MH posteriors overlap to within sampling noise (good sampler-vs-sampler agreement), and the σ8 ↔ P₀ degeneracy clearly shifts the lows8 (red) posterior to higher P₀ than the baseline (blue):
The full runnable script (loader + bestfit + NUTS + MH overlay +
plotting) is at
examples/nuts_clyy_profile.py.

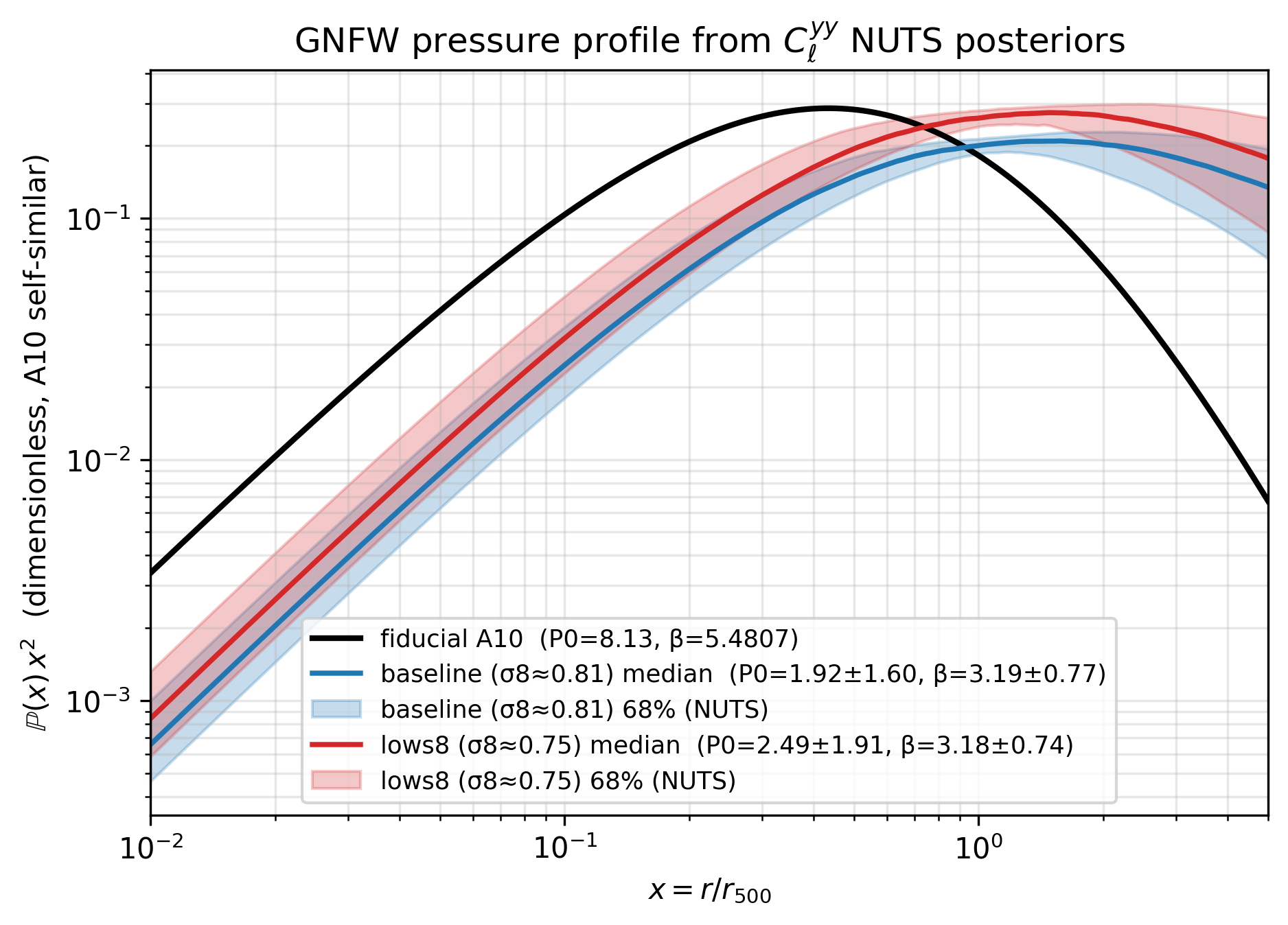

Posterior bands on the GNFW pressure profile#
Since (P₀, β) are the only GNFW parameters sampled in the fit above, each posterior sample maps to a different dimensionless profile
Drawing 500 random samples per chain and taking the 16/50/84 percentiles gives a median curve + 1σ band per cosmology. Plotted together with the fiducial A10 profile and a \(\,p(x)\,x^2\) y-axis (which flattens the inner power-law fall-off and makes the outer slope β easy to read):
Two physical observations stand out:
The data prefer a much shallower outer profile than A10. Median β ≈ 3.2 in both fits vs the A10 fiducial β = 5.48.
lows8 ↔ higher pressure, as expected — at lower σ8 you need more pressure per cluster to match the same Cl^yy amplitude, so the red band sits above the blue across the full radial range.
The runnable script is at
examples/profile_bands.py.
Simulation-based inference (SBI / NPE via flowjax)#
Neural Posterior Estimation (NPE) is a natural fit for classy_szlite:
the bottleneck of SBI is the ability to simulate \((\theta, y)\) pairs
quickly, which is exactly what cl_yy_factory delivers (~5 ms/eval,
trivially jax.vmap-batchable). We trade gradients (which SBI does
not need) for an amortised posterior — a single trained
conditional normalizing flow returns the posterior at any new
bandpower realisation in O(ms).
The example uses flowjax
to train a conditional Masked Autoregressive Flow
\(q_\phi(\theta \mid y)\) on \(\sim\)8000 simulations per cosmology,
with a Gaussian proposal centred on the L-BFGS bestfit (sequential
NPE without importance reweighting — the simplest variant). It

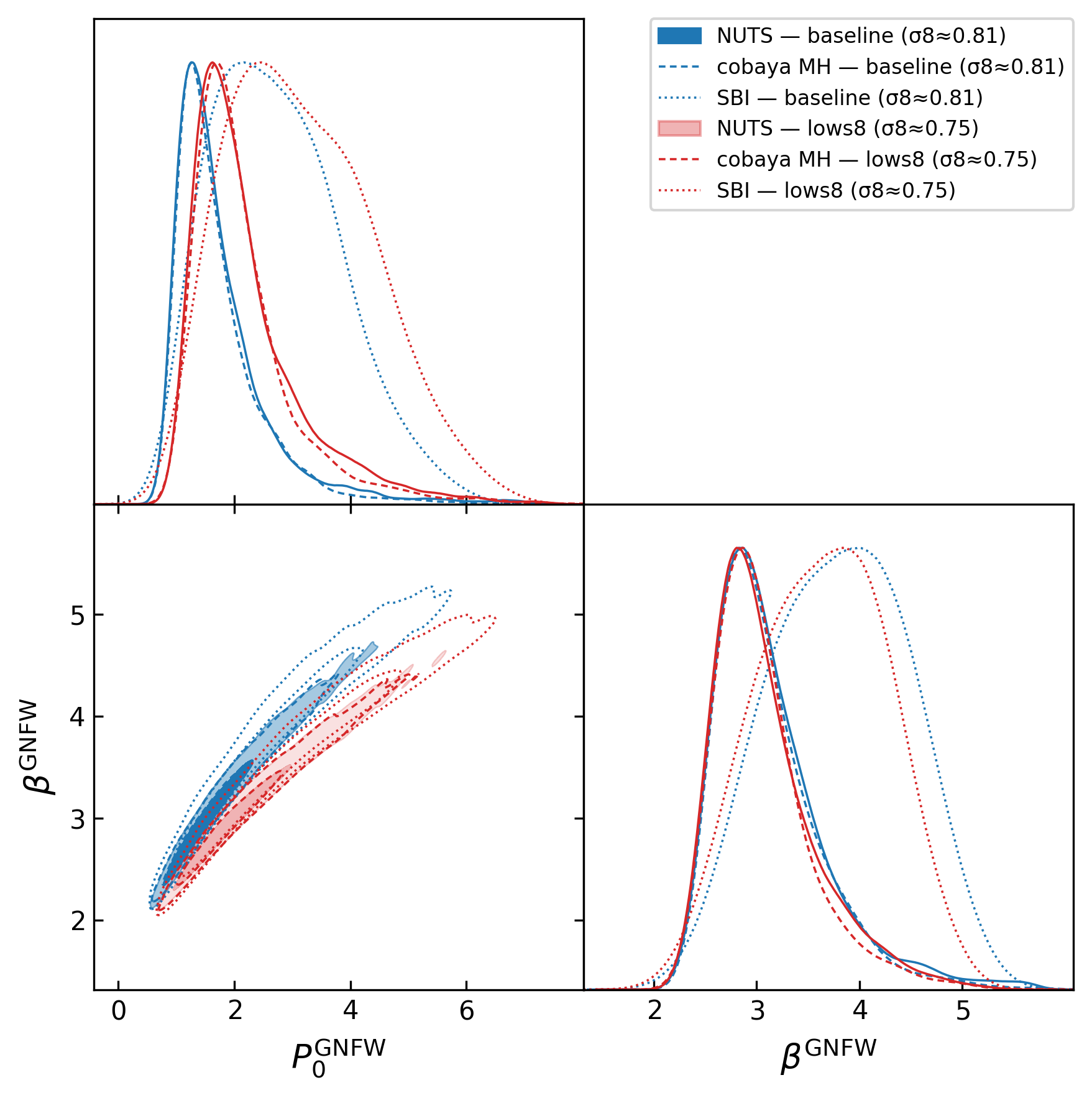

overlays NUTS + cobaya RW-MH + SBI on the same (P_0, \beta) corner
for the baseline + lows8 cosmologies (6 contours total):

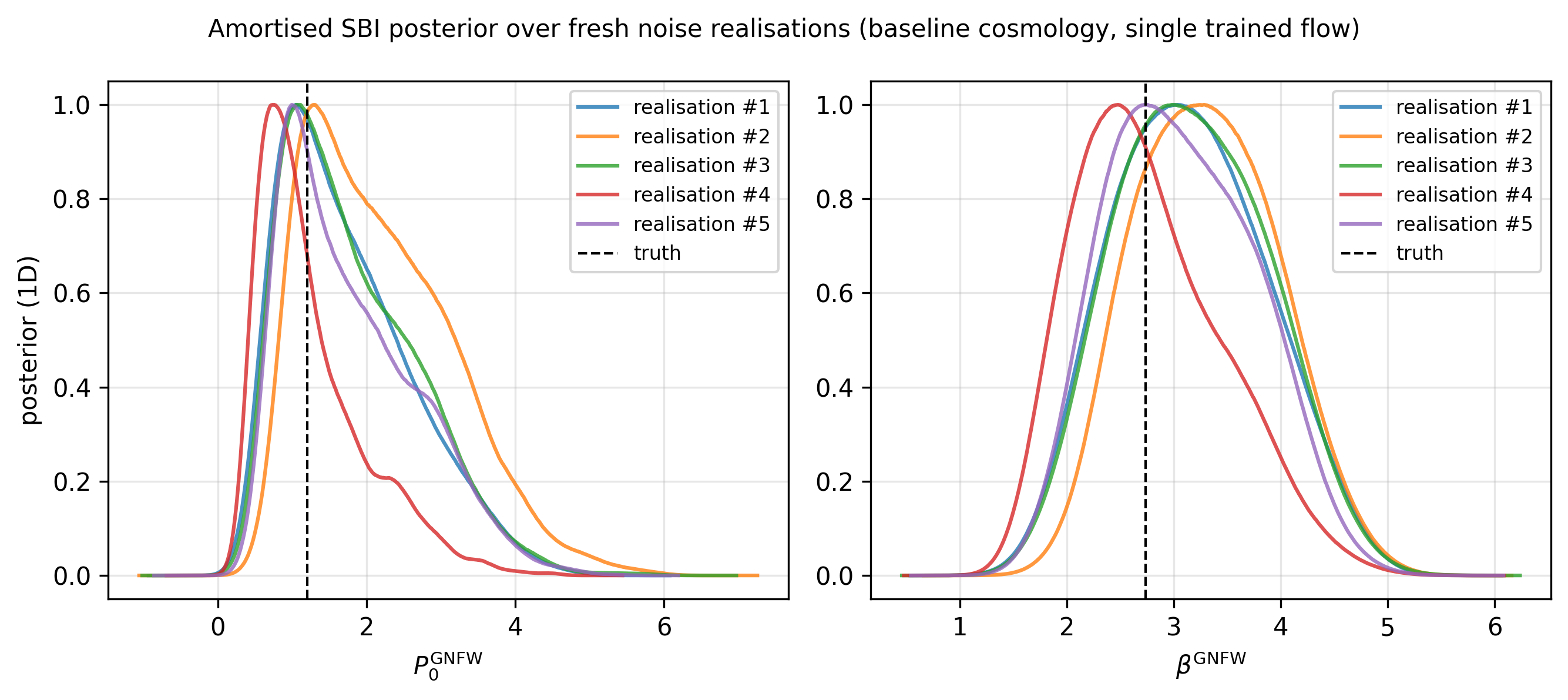

And it shows the amortisation in action — five fresh noise realisations passed through the SAME trained flow give five 1-D posteriors in O(ms), with the truth (vertical dashed line) sitting within the bulk of each:
Typical wall time per cosmology on a laptop CPU: ~5 s simulation
(vmap-batched) + ~10 s flow training + O(ms) per posterior
evaluation. The runnable script is at
examples/sbi_clyy_profile.py.
from flowjax.flows import masked_autoregressive_flow
from flowjax.distributions import Normal
from flowjax.train import fit_to_data
# theta_train.shape = (N, 2) y_train.shape = (N, n_bandpowers)
flow = masked_autoregressive_flow(
key=jr.key(0),
base_dist=Normal(jnp.zeros(2)),
cond_dim=y_train.shape[1],
nn_width=128, nn_depth=3, flow_layers=8,
)
flow, _ = fit_to_data(jr.key(0), flow, data=(theta_train, y_train),
max_epochs=500, batch_size=512, learning_rate=5e-4)
# Amortised: evaluate at any new y in O(ms)
samples = flow.sample(jr.key(1), sample_shape=(3000,), condition=y_obs)
Fisher matrix in one autodiff sweep#
For a Gaussian likelihood with fixed covariance \(\Sigma\), the Fisher matrix at parameter point \(\boldsymbol{\theta}\) is
with \(\mu(\boldsymbol{\theta}) = \) forward\((P_0, \beta)\). The Jacobian
\(J = \partial \mu / \partial \boldsymbol{\theta}\) is exactly what
jax.jacfwd returns in a single forward-mode autodiff sweep — no
finite-difference loop, no \(\varepsilon\) tuning.
import jax, jax.numpy as jnp
import classy_szlite as csl
forward = build_forward(cosmo, ell) # see nuts_clyy_profile.py
def mu(x):
return forward(x[0], x[1])
J = jax.jit(jax.jacfwd(mu))(jnp.asarray([P0_bf, beta_bf])) # (n_bp, 2)
F = J.T @ inv_cov @ J # (2, 2)
cov_fisher = jnp.linalg.inv(F)

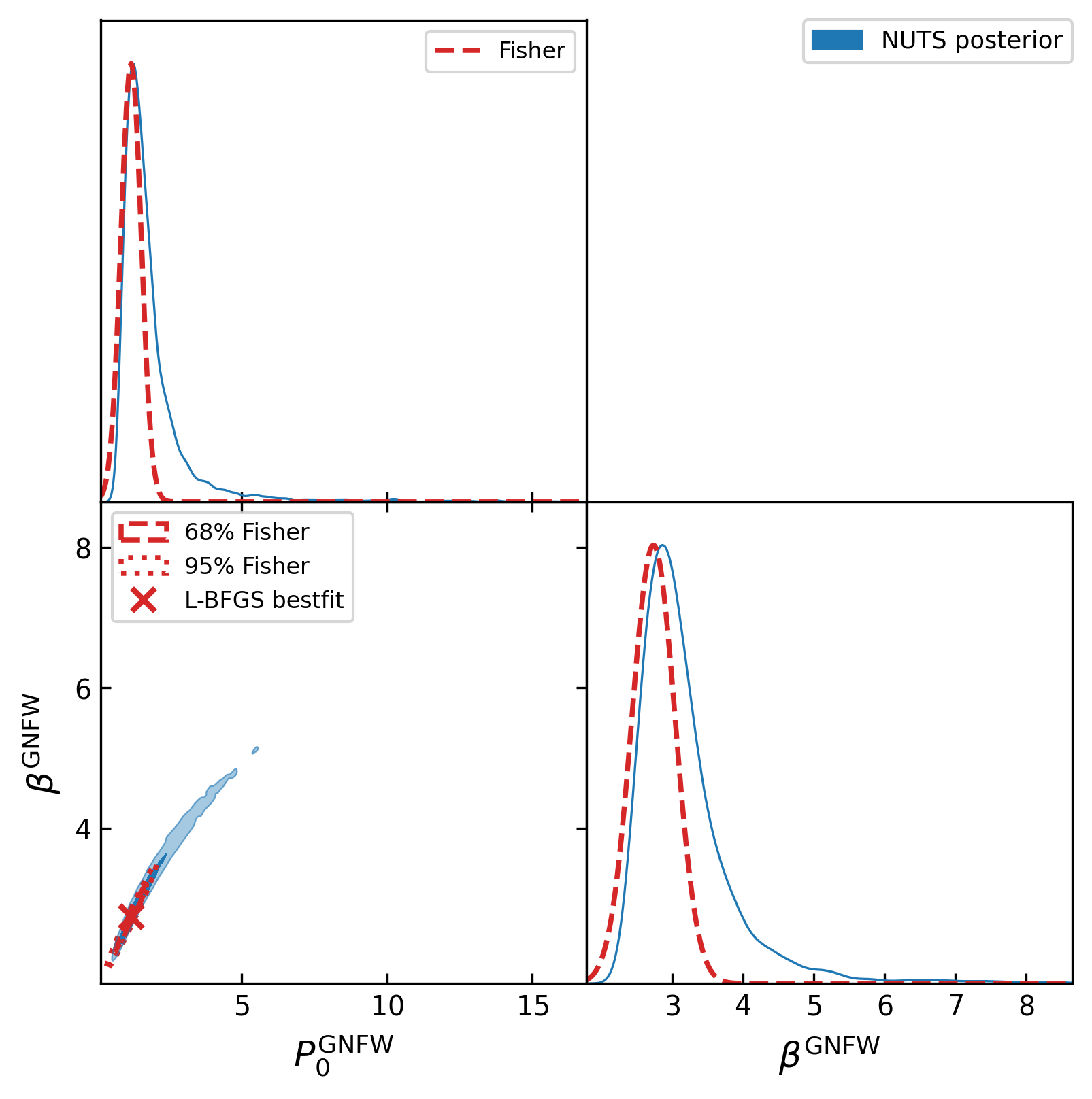

The examples/fisher_clyy_profile.py script runs this end-to-end and
overlays the 68%/95% Fisher ellipses on the NUTS posterior:
Wall time: ~135 ms per Fisher matrix after JAX warmup (10-run average, including jit dispatch). The autodiff Fisher matches a 2-point central finite-difference reference (\(\varepsilon = 10^{-3}\)) to \(|\Delta F|/|F| \sim 10^{-6}\). The Fisher ellipse here is much tighter than the NUTS posterior (σ_Fisher ≈ 0.35 vs σ_NUTS ≈ 1.5 for \(P_0\)) — Fisher captures only the local quadratic curvature at the bestfit and misses the heavy tail toward larger \(P_0\) that NUTS readily explores. This is a useful sanity check for forecasting: the Gaussian Fisher approximation will under-estimate the uncertainty when the true posterior is skewed.
The runnable script is at
examples/fisher_clyy_profile.py.
End-to-end MCMC pattern (cobaya Theory)#
For the RW-MH cobaya baseline that the NUTS example above reproduces,
the natural cobaya Theory shape is:
from cobaya.theory import Theory
import classy_szlite as csl
import numpy as np, jax, jax.numpy as jnp
jax.config.update("jax_enable_x64", True)
class MyTSZTheory(Theory):
# The standard 6 cosmology parameters — fixed for this Theory
omega_b: float = 0.0226
omega_cdm: float = 0.118
H0: float = 68.22
tau_reio: float = 0.0561
ln10_10_As: float = 3.06
n_s: float = 0.9743
multipoles_file: str = None # required: 1 ell per line
params = {"P0GNFW": 8.13, "c500": 1.156, "gammaGNFW": 0.3292,
"alphaGNFW": 1.062, "betaGNFW": 5.48, "B": 1.25}
def initialize(self):
ell = jnp.asarray(np.loadtxt(self.multipoles_file))
cosmo = csl.CosmoParams(
omega_b=self.omega_b, omega_cdm=self.omega_cdm,
H0=self.H0, tau_reio=self.tau_reio,
ln10_10_As=self.ln10_10_As, n_s=self.n_s,
)
self._csl = csl
self._eval = csl.cl_yy_factory(cosmo, ell) # heavy work, done once
self._ell_np = np.asarray(ell)
self._dl_factor = ell * (ell + 1) / (2 * jnp.pi) * 1e12
def get_can_provide(self): return ["Cl_sz"]
def calculate(self, state, want_derived=True, **p):
prof = self._csl.ProfileParamsA10(
P0=p["P0GNFW"], c500=p["c500"],
gamma=p["gammaGNFW"], alpha=p["alphaGNFW"],
beta=p["betaGNFW"], B=p["B"],
)
cl1, cl2 = self._eval(prof)
state["Cl_sz"] = {
"ell": self._ell_np,
"1h": np.asarray(self._dl_factor * cl1),
"2h": np.asarray(self._dl_factor * cl2),
}
def get_Cl_sz(self):
return self._current_state["Cl_sz"]
A complete worked example with this MyTSZTheory paired with a Gaussian
likelihood (ACT-DR6 may26 setup) converges in ~2 min wall for
~10,000 samples (R−1 = 0.008, 4-way MPI, Rminus1_stop = 0.01).
Cosmology scan#
import classy_szlite as csl
import numpy as np
omega_cdm_vals = np.linspace(0.10, 0.14, 5)
for omega_cdm in omega_cdm_vals:
cosmo = csl.CosmoParams(omega_cdm=float(omega_cdm))
d = csl.derived(cosmo)
print(f"omega_cdm = {omega_cdm:.3f} → σ8 = {d['sigma_8']:.4f}, "
f"Ω_m = {d['Omega_m']:.4f}")
Exploring EDE space#
The v2 emulator suite spans early-dark-energy parameter space; set
fEDE, log10z_c, thetai_scf to non-default values to leave the
LCDM-equivalent point:
ede_cosmo = csl.CosmoParams(
fEDE=0.10, log10z_c=3.5, thetai_scf=2.83,
)
csl.derived(ede_cosmo)
# → σ8 drops as fEDE rises (more EDE → less time for growth)
Pre-compiling a forward + gradient function#
For a parameter-inference pipeline that calls both the forward and the gradient many times, JAX naturally caches the compiled trace:
import jax, jax.numpy as jnp
import classy_szlite as csl
cosmo = csl.CosmoParams()
ell = jnp.geomspace(2, 9000, 80)
ev = csl.cl_yy_factory(cosmo, ell)
def D_ell(P0, beta):
profile = csl.ProfileParamsA10(P0=P0, beta=beta, B=1.25)
cl1, cl2 = ev(profile)
return ell * (ell + 1) / (2 * jnp.pi) * (cl1 + cl2) * 1e12
dl = D_ell(8.13, 5.48) # ~5 ms
g_P0 = jax.grad(lambda P0, b: jnp.sum(D_ell(P0, b)), argnums=0)(8.13, 5.48) # ~17 ms warm
g_beta = jax.grad(lambda P0, b: jnp.sum(D_ell(P0, b)), argnums=1)(8.13, 5.48)
